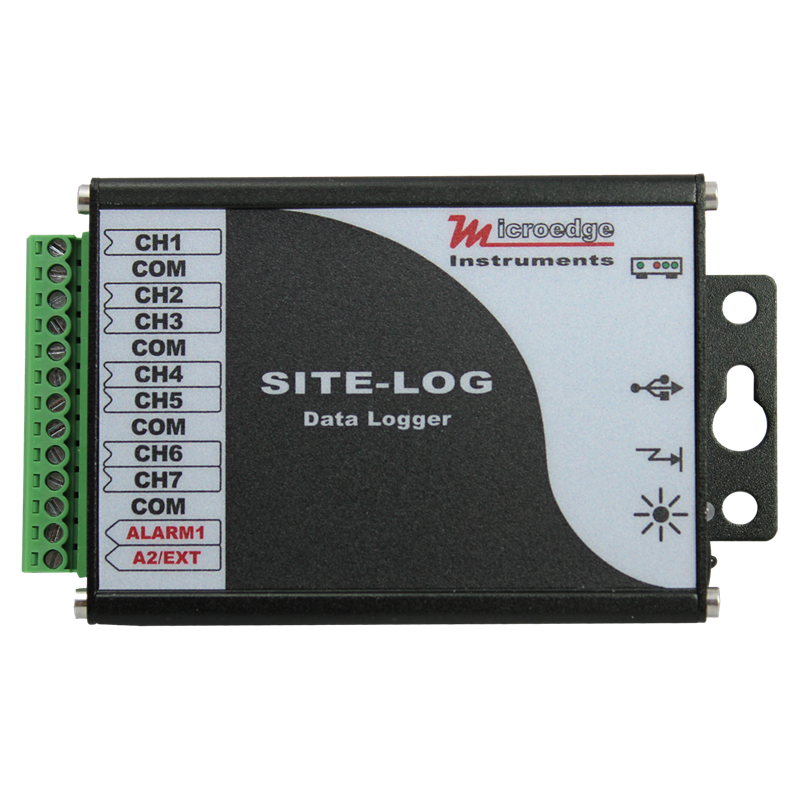

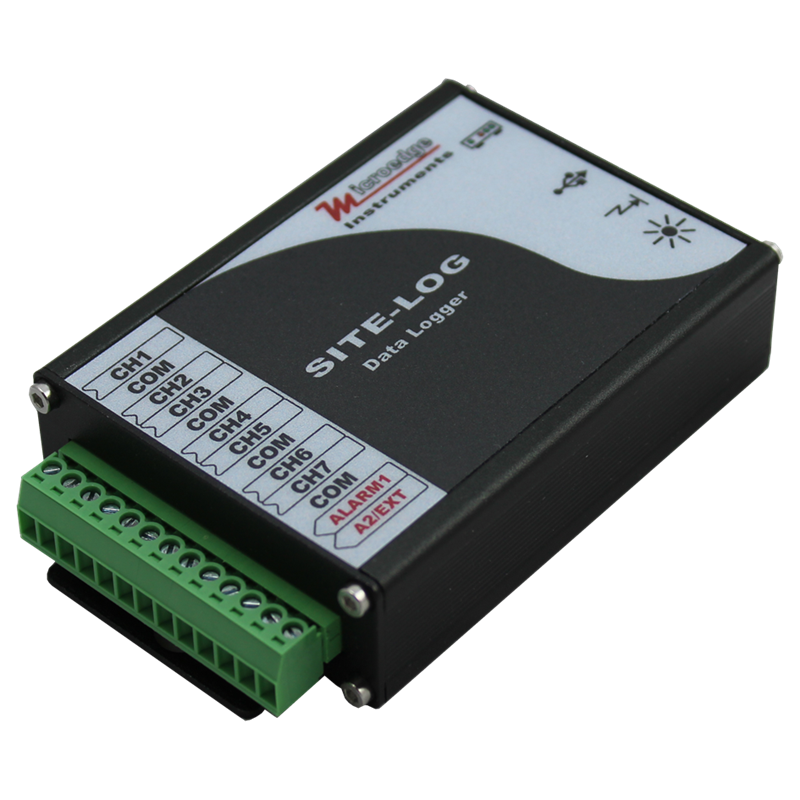

Microedge Site-Log LPTH-1
Multi Channel Data Logger - Thermistor Temp Logger
The Microedge Site-Log LPTH-1 Data Logger is an industrial 7 channel high accuracy Programmable Thermistor Data Logger. The Input range is programmable offering Low and high temperature spans for 10kΩ NTC thermistors, with programmable sample rates down to 20 milliseconds when powered by an external 5V DC power source and down to 5 seconds when powered by its internal battery. There is also an additional 8th channel that can be switched on for monitoring ambient temperature from -40°C to + 70°C.
The seven digital channels are connected via a pluggable terminal block for easy wiring the unit features an aluminium enclosure and conformal coating PCB and thus the logger has excellent performance in the harshest industrial environment.
What we like:
All Microedge data loggers have Plug & Play USB ports which makes them easy to be accessed by Windows-based users. Simply plug the data logger into the USB port of the computer, and SiteView software will automatically recognize it. Alternatively you can connect up to 4 Microedge data loggers to a Microedge Smart-Hub. The Smart-Hub is a compact but powerful device that allows remote communication with Microedge data loggers. Smart-Hub acts as a USB Device Server allowing remote access to Microedge Data Loggers via an Ethernet/Internet connection. It can also be used as a Modbus TCP gateway were connected data loggers become standard Modbus TCP slave devices.
