NetAlly LinkRunner 10G Description

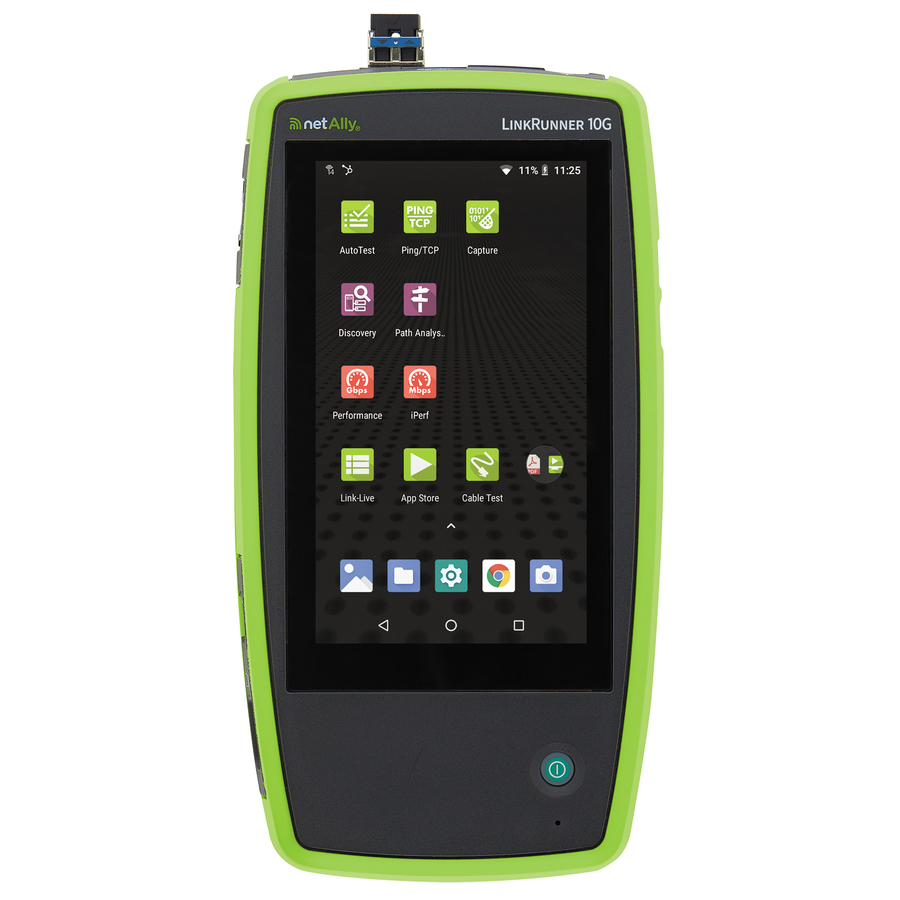

The NetAlly LinkRunner 10G is a high-performance portable Ethernet tester for Multi-Gig and 10 Gig networks (copper and fiber) that simplifies validation and configuration, and streamlines workflows by combining essential functions into a single, portable, ruggedized unit. LinkRunner 10G is perfect for remote site validation and troubleshooting, eliminating the need to purchase multiple testers. Advanced apps make the user’s workflow more efficient, by expanding the usage of the instrument beyond testing, allowing the user to check trouble tickets, run speed tests, configure networked devices, and complete other tasks with its smartphone-like features covering the following tests.
AutoTest is the most comprehensive NetAlly testing App on the LinkRunner 10G. It allows you to quickly run a variety of test types and save their configurations and network credentials for access whenever you need them. The app is fully customizable with test “profiles” for different network connections, VLANs, and individual “test targets” that can run with any profile. AutoTest allows engineers to transfer their knowledge of network configurations to the instrument, empowering frontline technicians to run tests against various wired VLANs and with minimal training. The result is a repeatable, documented test with shortened overall test times, which otherwise would not be possible with other test methods.
The Wired Link Test shows advertised and actual speed and duplex to diagnose mismatch issues. On links over 1G, each pair channel is graded based on the minimum SNR observed, to verify copper media for Multi-Gig capability (1 / 2.5 / 5 / 10Gig) and provide root cause diagnosis when link speed downshifting occurs. Investment in Multi-Gig infrastructure is wasted if the cable plant cannot support the desired speed. But diagnosis of link “downshifting” is difficult, often leading to finger-pointing between cabling contractors and equipment vendors. LinkRunner 10G’s SNR measurement on active links provides root-cause evidence when link speed issues occur.
VLAN Identification & Analysis with the LinkRunner 10G Wired AutoTest automatically identifies and lists VLANs supported by the connected switch port by analyzing the VLAN IDs of the traffic received. The LinkRunner 10G continues to show the distribution of traffic by VLAN until another wired AutoTest has executed, or the link to the switch port is severed. Proper VLAN configuration of switch ports have become important to the operation and security of the modern network so that various traffic can be properly isolated. The LinkRunner 10G wired AutoTest provides the visibility and documentation of VLAN configuration of switch port automatically that makes this previously complex verification task simple.
Switch Visibility the LinkRunner 10G AutoTest automatically detects the nearest connected switch port by analyzing the xDP (CDP, LLDP, and EDP) protocols received. The LinkRunner 10G reports the content of the first xDP packet received as the nearest switch in the AutoTest result. It continues to monitor the xDP traffic received, and lists the source devices and the content of xDP traffic in the Switch Test detail. The LinkRunner 10G wired AutoTest provides quick visibility to the configuration of the nearest switch port connected in most cases. Even when it is connected to a switch that has the xDP traffic function disabled or set to be transmitted very infrequently, the LinkRunner 10G can still provide visibility to the nearest xDP-supporting devices. There is no need to use a protocol analyzer to verify xDP configuration, which is much easier for network technicians to handle.
Capture Test, the LinkRunner 10G can capture up to 10G line-rate to create a PCAP file of up to 1Gigabyte. Packet slicing and filtering are supported, and PCAP files can be uploaded to the Link-Live Cloud Service for easy sharing. Having the power of 10G line-rate capture (with NO dropped packets) in the palm of your hand means you are always equipped to gather the evidence needed for in-depth troubleshooting and problem escalation.
Performance Test the LinkRunner 10G Performance app provides point-to-point performance testing with a UDP traffic stream through its wired network interface against up to eight NetAlly hardware/software endpoints. This test quantifies network performance in terms of target throughput rate, loss, latency, and jitter at a specified throughput

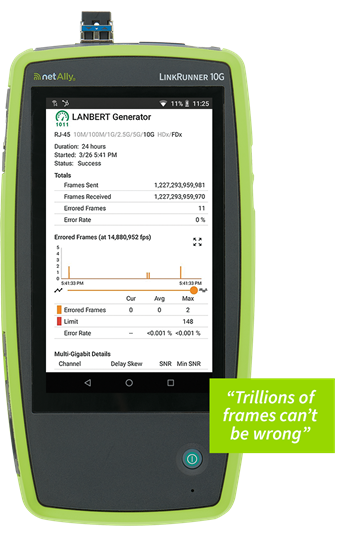

The LANBERT Test the media qualification app for NetAlly’s multi-function professional instruments provides a simple and fast method of assessing the quality of transmission and available bandwidth in your copper and fiber cable plant. LANBERT generates and measures the transmission of line rate Ethernet frames over your network cabling infrastructure, qualifying its ability to support 1G/10G on fiber and 100M/1G/2.5G/5G/10G on copper links. This test requires two instruments. With the insatiable growth in bandwidth, increasing speeds of WiFi APs (with Multi-Gig 2.5/5Gbps backhauls), 1Gbps to 10Gbps upgrades, and deploying new fiber links, network professionals must have confidence that their network will transport that data error-free at the maximum speed possible. LANBERT allows you to maximize the utilization of your existing cabling, preventing unnecessary cabling upgrades.
