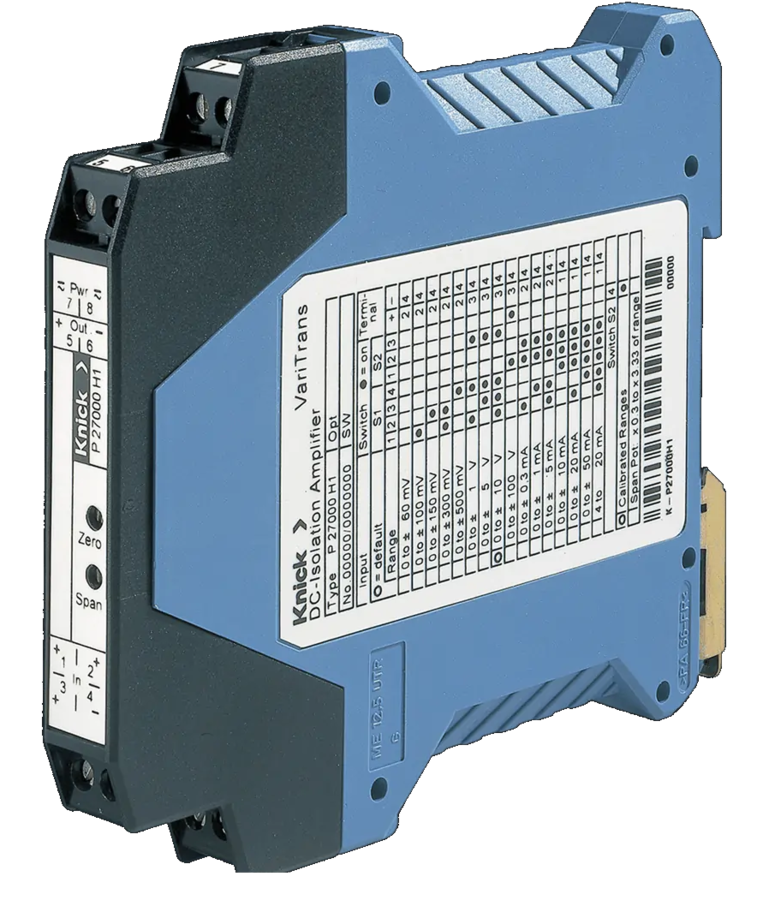

VariTrans P 27000 F1 with Selectable DC mV Ranges

• 30 Selectable current shunt input/signal output combinations to choose from.
• All programmable via DIP switches.
• High accuracy device with a gain error of less than 0.08%
• Wide range auxiliary power supply from 20 to 253V AC/DC
• To guarantee the specified isolation capabilities devices are subjected to routine testing with 5kV AC to ensure working voltages up to 1kV AC/DC.
• Very narrow 12.5 mm wide yet robust modular housing with fixed screw terminals as standard.
• Complies with EN61010-1 Safety Standard
• Protection against electric shock is achieved through protective separation according to EN 61140
• Each transducer is protected with a 5 year warranty.

The Knick VariTrans P 27000 F1 Current Measurement Transducers offer a range of selectable mV inputs suitable for use with precision DC current shunt resistors with a range of output signals suitable for most monitoring systems. These include all popular standard DC current shunt output ranges including ±60mV, 100mV, 150mV, 300mV & 500mV and all are available with a selectable range of standard output signals 4…20mA, -20…0…+20mA, 2…10V, -10…0…+10V, 1…5V or -5…0…+5V. Programming is carried out via DIP switches and no further adjustment is required to maintain accuracy. Further process input/output signals are also available.

The isolation system meet the requirements of EN61010-1 and protective separation to EN61140 by reinforced insulation according to EN61010-1.

There are a total of 30 selectable options available for DC Current Measurement via DC Current Shunts. All have fixed screw terminal connection.
