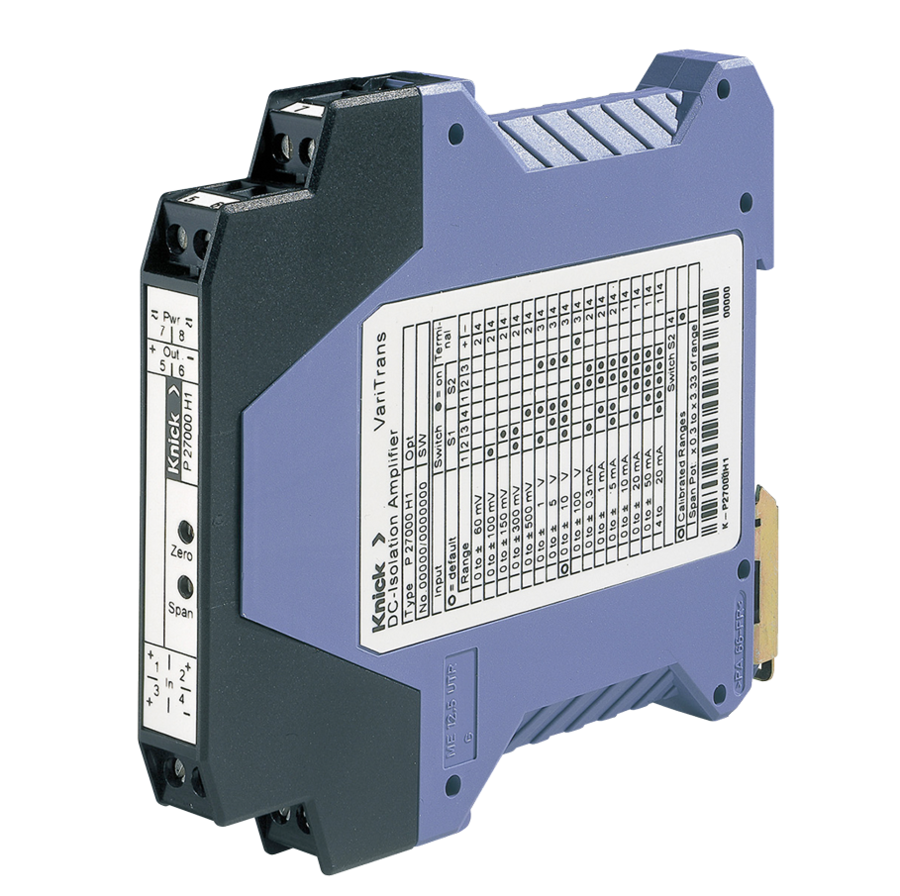

VariTrans P 27000 Signal Conditioner
VariTrans P 27016 F1
Range: -20…0…+20mA to -20…0…+20mA
The Knick VariTrans P 27000 Signal Conditioner meets the isolation requirements of EN61010-1 at 1kV AC/DC and protection against electric shock with protective separation to EN 61140 at up to 600V AC/DC. The unit offers a wide range auxiliary power supply from 20 to 253V AC/DC and is housed in a robust yet narrow 12.5mm wide DIN rail mount case. There are 7 fixed unipolar/bipolar ranges to choose from based around popular process signals.
What we like:
The Knick VariTrans P 27000 Signal condition offer reliably 3 way galvanic isolation between input, output and power supply with maximum long term stability that’s backed up by a 5 year warranty.
To guarantee the specified isolation capabilities devices are subjected to routine testing of up to 5kV AC to ensure working voltages up to 1kV AC/DC.
