GW Instek PSW 40-27

• The PSW series offers 18 individual models to choose from all in a high-power density compact design.
• Voltage Rating: 0…30V, 40V, 80V, 160V, 250V & 800V. With output power rating at 360W, 720W & 1080W.
• Multi-range Voltage & Current combinations from one single Power Supply
• The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection.
• The PSW has selectable slew rates for CC and CV mode. This gives the PSW power supply the ability to limit the current/voltage draw of the power supply.

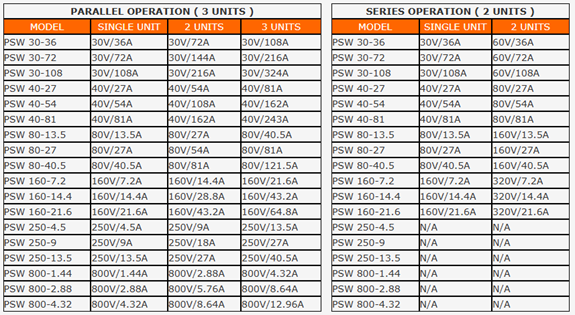

• Use the PSW individual units in Parallel Operation (up to 3 units Parallel) to double/treble the current/power capacity.
• Use selected PSW units in Series Operation (2 units in Series) to double the voltage/power capacity.
• 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W
• Standard Interface: LAN, USB, Analog Control Interface
• Optional Interface: GPIB-USB Adaptor, RS232-USB Cable
• LabView Driver

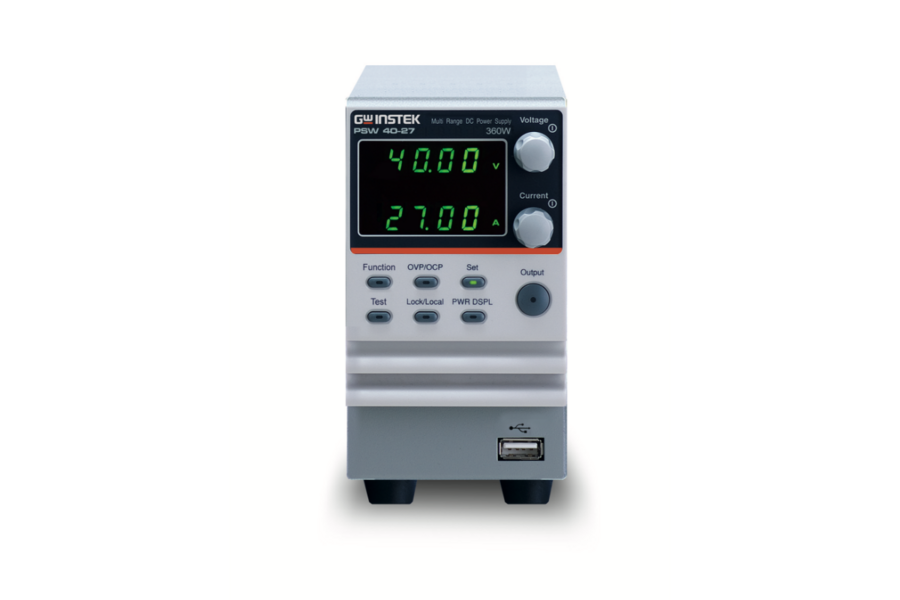

The GW Instek PSW 40-27 Single Channel Programmable Switching DC Power Supply delivers precise, stable power with a compact, user-friendly design, making it the ideal choice for single-channel, high-accuracy testing within its stated voltage, current and power range. The PSW Series operate in Constant Current (CC) or Constant Voltage (CV) mode within a wide operating range limited only by the output power.

The PSW has selectable slew rates for CC and CV mode. This gives the PSW power supply the ability to limit the current/voltage draw of the power supply. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. The PSW series offers 18 individual models to choose from all in a high-power density compact design. And then with the flexibility of multi-range power utilization and series/parallel connection, the PSW-Series significantly reduces the users cost for various power supply products and thus can accommodate projects with different power requirements.

• 1 x Power Cord
• 1 x Output terminal cover
• 1 x GTL-123 Test leads: 1x red, 1x black
• 1 x GTL-240 USB Cable
• 1 x PSW-004 Basic Accessory Kit: M4 terminal screws and washers x2, M8 terminal bolts, nuts and
• washers x2, Air filter x1, Analog control protection dummy x1, Analog control lock level x1
• 1 x User Manual
