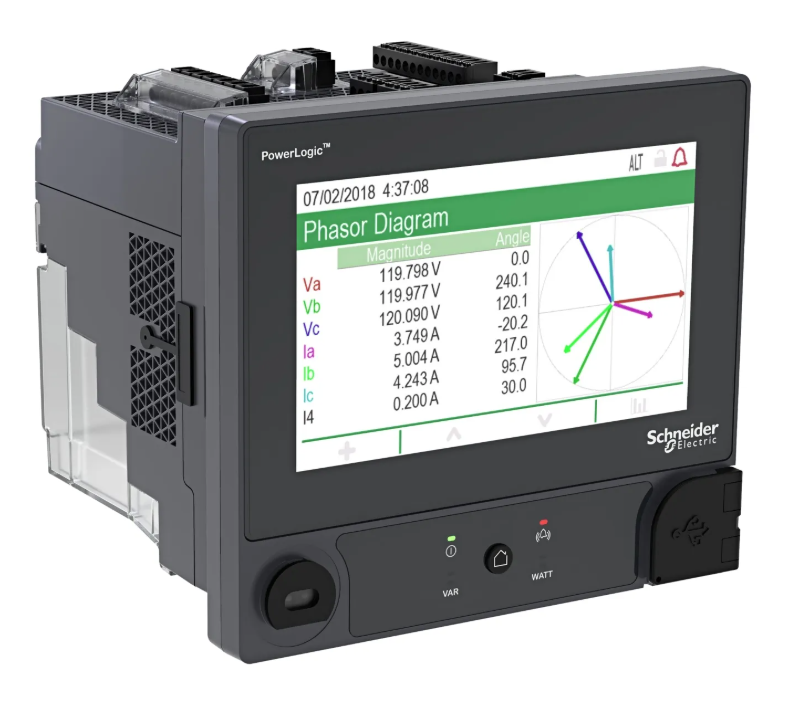

PowerLogic ION9000T
Fixed Site Power Quality Analyser – Class A Samples at 100MHz for fast transient capture down to 100 nanoseconds. Displays U/I harmonics up to 63rd via its touchscreen colour LCD display.
| Power Supply: | 95…480VAC 50/60Hz | |
| 90…120V 400Hz 110…480VDC | ||
| Order Code: | PowerLogic ION95040 [METSEION95040] | |
The Schneider Electric PowerLogic ION9000 power quality meter series is designed for high-performance energy monitoring, revenue-grade metering and detailed power quality analysis. Built for critical electrical infrastructure, the ION9000 delivers industry-leading measurement accuracy, comprehensive event recording and advanced communications to support modern energy management systems.
Additionally, the PowerLogic ION9000T provides high-resolution transient detection and waveform capture. With 10 MHz sampling it can capture transients down to 100ns duration at up to 10kV peak voltage. Enabling you to detect and record transient events that may exceed the voltage withstand of sensitive equipment potentially causing component failure and thus problems within your electrical supply system.
Complies with recognized power quality monitoring standards: IEC61000-4-30 class A, IEC62586-1/-2. Connect via web browser for full PQ analysis, easy-to-read analysis according to EN50160 and IEEE519 standards. Patented disturbance direction detection, extended waveform capture (1s pre-event data plus 3s event data @1024 s/c) and high-speed RMS data capture for in-depth analysis of any PQ disturbance in your electrical system.
Ideal for utility, industrial and commercial applications, the ION9000 series provides continuous monitoring of electrical networks, helping engineers identify power quality issues, improve system reliability and optimise energy performance. Combining Class 0.1 revenue metering with advanced power quality monitoring, the meter provides detailed insight into electrical system performance while capturing disturbances that could affect operational reliability.
Designed for integration into energy management and SCADA systems, the ION9000 Series supports a wide range of industry-standard communication protocols, making it suitable for both new installations and retrofit projects. Its flexible mounting options, robust construction and extensive measurement capabilities make it an ideal solution for substations, industrial plants, commercial buildings, data centres and critical infrastructure.
Whether monitoring energy consumption, analysing harmonics, recording transient events or verifying compliance with international power quality standards, the ION9000 series provides the data required to make informed operational decisions.
